P541 video card Settings and Configuration
ACER, INC.
P541
Card Type | MPEG decoder |
Video Chip Set | Unidentified |
Highest Resolution Supported | 720 x 480 |
Maximum Video Memory | 4MB DRAM |
Data Bus | 16-bit ISA |
Video Types Supported | VGA |
Video Formats Supported | NTSC, PAL |

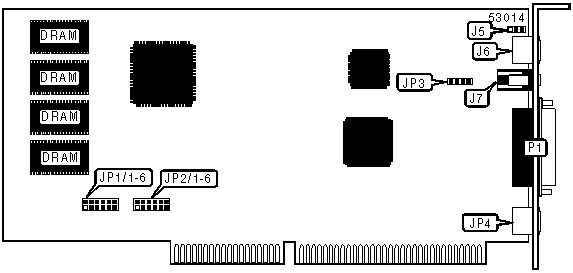

CONNECTIONS | |||
Function | Label | Function | Label |
IR connector | J5 | 15-pin analog video port | P1 |
IR receiver connector | J6 | Audio out (internal) | JP3 |
Audio out (external) | J7 | S-Video in/out | JP4 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | PnP enabled | JP2/1 | Open |
PnP disabled | JP2/1 | Closed | |
| » | I/O address range 2B0H - 2BFH | JP2/2 | Open |
I/O address range 2COH - 2CFH | JP2/2 | Closed | |
DMA CHANNEL SELECTION | |||||||
Channel | JP1/1 | JP1/2 | JP1/3 | JP1/4 | JP1/5 | JP1/6 | |
5 | Open | Open | Open | Open | Closed | Closed | |
| » | 6 | Open | Open | Closed | Closed | Open | Open |
7 | Closed | Closed | Open | Open | Open | Open | |
INTERRUPT SELECTION | |||||
IRQ | JP2/3 | JP2/4 | JP2/5 | JP2/6 | |
5 | Open | Open | Open | Closed | |
| » | 10 | Open | Open | Closed | Open |
11 | Open | Closed | Open | Open | |
12 | Closed | Open | Open | Open | |
