DCS W629 video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	2MB EDO DRAM
Video Types Supported	VGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

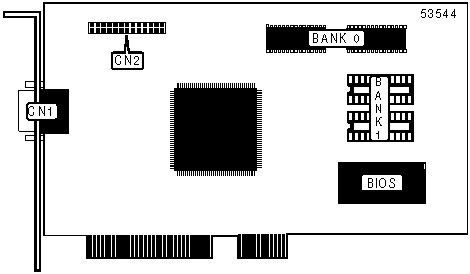

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

VIDEO MEMORY CONFIGURATION (DRAM)
Size	Bank 0	Bank 1
1MB	(2) 512KB	None
2MB	(2) 512KB	(2) 512KB
