ACCELGMX 2000 video card Settings and Configuration






ACCEL GRAPHICS, INC.

ACCELGMX 2000

Card Type

Video card

Video Chip Set

Unidentified

Maximum Video Memory

80MB DRAM, 16MB VRAM

Video Types Supported

Monochrome, CGA, EGA, VGA, XVGA

Highest Resolution Supported

1920 x 1200

Data Bus

32-bit PCI

CONNECTIONS

Function

Label

15-pin video port

CN1

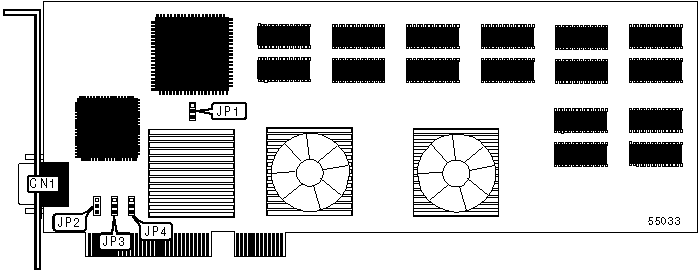

USER CONFIGURABLE SETTINGS

Function

Label

Position

Onboard VGA GAMMA source enabled

JP1

Pins 1 & 2 closed



Onboard VGA GAMMA source disabled

JP1

Pins 2 & 3 closed

Set base class 3

JP2

Pins 1 & 2 closed



Set base class 0

JP2

Pins 2 & 3 closed

Onboard VGA source enabled

JP3

Pins 1 & 2 closed



Onboard VGA source disabled

JP3

Pins 2 & 3 closed

Enable fixed address A000-BFFF

JP4

Pins 1 & 2 closed



Disable fixed address

JP4

Pins 2 & 3 closed

MISCELLANEOUS TECHNICAL NOTES

Note: Memory chips are located on both sides of the card.
