ACCELGALAXY 52 video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	52MB
Video Types Supported	Monochrome, CGA, EGA, VGA, XVGA
Highest Resolution Supported	1920 x 1080
Data Bus	32-bit PCI

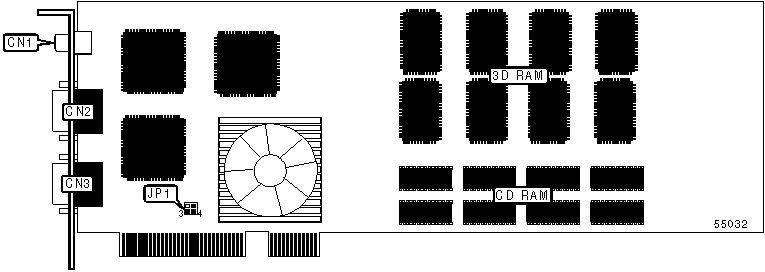

CONNECTIONS
Function	Label	Function	Label
RCA stereo output connector	CN1	15-pin secondary video port	CN3
15-pin primary video port	CN2

VGA SELECTION
Setting	JP1/pins 1 & 2	JP1/pins 3 & 4
VGA enabled	Open	Closed
VGA disabled	Closed	Open

MEMORY CONFIGURATION
Total memory	Texture memory (CDRAM)	Frame/local buffer (3DRAM)
52MB	32MB	20MB
Note: Memory chips are located on both sides of the board.
