enhanced 32-bit pci ethernet adapter Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
Celan technology, inc
enhanced 32-bit pci ethernet adapter
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair, RG-58A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RJ-45 unshielded twisted pair |
CN1 |
RG-58A/U 50ohm coaxial |
CN2 |
|

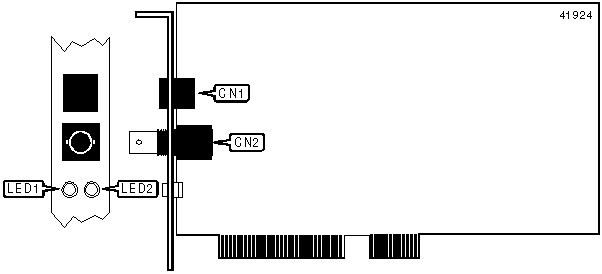

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
Blinking |
Data is being transmitted/received |
|
LED1 |
Unidentified |
Off |
Data is not being transmitted/received |
|
LED2 |
Unidentified |
On |
UTP link is good |
|
LED2 |
Unidentified |
Off |
UTP link is broken |
|
|
|
|
 |
|
