enhanced 2-in-1 ps/2 mca ethernet adapter Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
Celan technology, Inc
enhanced 2-in-1 ps/2 mca ethernet adapter
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair, RG-58A/U 50ohm coaxial |
|
Data Bus |
16-bit MCA |
|

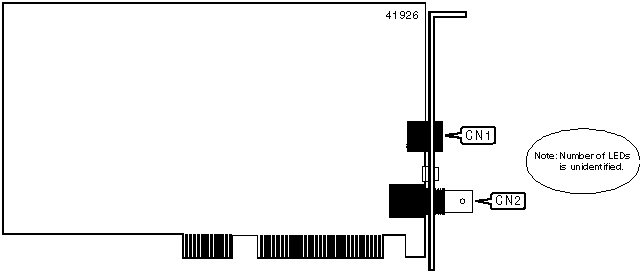

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unshielded twisted pair |
CN1 |
RG-58A/U 50ohm coaxial |
CN2 |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Number and function of LED(s) is unidentified. |
|
|
|
|
 |
|
