ETHERDUO-NE2 (EN-1653) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACCTON TECHNOLOGY CORPORATION
ETHERDUO-NE2 (EN-1653)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Star |
|
Wiring Type |
RG58A/U 50ohm coaxial Unshielded twisted pair |
|
Boot ROM |
Available |
|
CABLE TYPE | ||
|
Type |
JP1 |
JP1A |
|
Unshielded twisted pair |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
RG58A/U 50ohm coaxial |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|

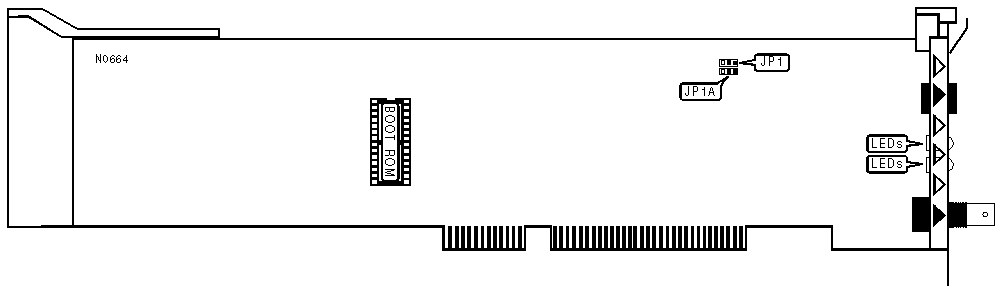

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
10BaseT link integrity exists |
|
LED1 |
Green |
Off |
10BaseT link integrity broken |
|
LED2 |
Green |
On |
Data is being received |
|
LED2 |
Green |
Off |
Data is not being received |
|
LED3 |
Yellow |
On |
Collisions detected on network |
|
LED3 |
Yellow |
Off |
No collisions detected on network |
|
LED4 |
Green |
Blinking |
Data is being transmitted |
|
LED4 |
Green |
Off |
Data is not being transmitted |
|
|
|
|
 |
|
