ETHERDUO-PCI (EN1203) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACCTON TECHNOLOGY CORPORATION
ETHERDUO-PCI (EN1203)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
PCI |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

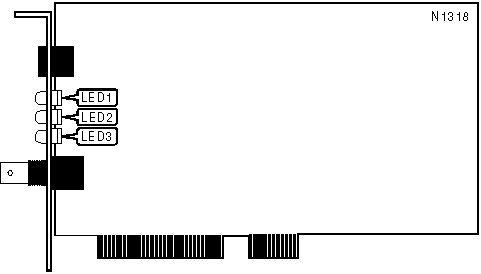

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
10Base-T network connection is good |
|
LED1 |
Green |
Off |
10Base-T network connection is broken |
|
LED2 |
Green |
On |
Valid 10Base-T connection selected |
|
LED2 |
Green |
Off |
10Base-2 connecion selected or no connection |
|
LED3 |
Green |
Blinking |
Network activity is detected |
|
LED3 |
Green |
Off |
Network activity is not detected |
|
|
|
|
 |
|
