IN-2000 Hard Disk/Floppy Controller Settings and Configuration
ALWAYS TECHNOLOGY CORPORATION
IN-2000
Data bus:
16-bit, ISASize:
Half-length, full-height cardHard drives supported:
Up to seven SCSI devicesFloppy drives supported:
Two 360KB, 720KB, 1.2MB, or 1.44MB

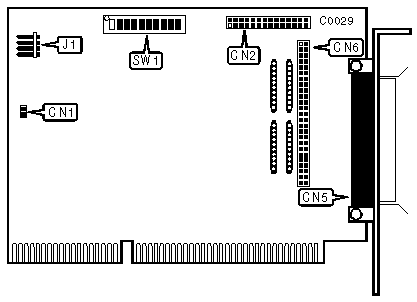

CONNECTIONS | |
Function | Location |
2-pin connector-drive active LED | CN1 |
34-pin data cable connector-floppy drive | CN2 |
25-pin SCSI connector-external | CN5 |
50-pin SCSI connector-internal | CN6 |
4-pin power connector-controller power | J1 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Asynchronous operation enabled | SW1/switch 8 | off |
Synchronous operation enabled | SW1/switch 8 | on | |
| » | Floppy drive enabled | SW1/switch 9 | on |
Floppy drive disabled | SW1/switch 9 | off | |
| » | Not used | SW1/switch 10 | off |
BIOS ADDRESS | |||
Address | SW1/switch 1 | SW1/switch 2 | |
| » | C800-CBFFh | off | off |
D800-DBFFh | on | off | |
D000-D3FFh | off | on | |
Disabled | on | on | |
I/O PORT ADDRESS | |||
Address | SW1/switch 3 | SW1/switch 4 | |
| » | 220-22Fh | off | off |
200-20Fh | on | off | |
110-11Fh | off | on | |
100-10Fh | on | on | |
INTERRUPT REQUEST | ||||
IRQ | SW1/switch 5 | SW1/switch 6 | SW1/switch 7 | |
| » | 15 | off | off | off |
14 | off | on | off | |
11 | off | off | on | |
10 | off | on | on | |
Disabled | on | off | off | |
