OPTIONS 20/40GB, 8mm. INTERNAL TAPE Tape drive card Settings and Configuration

Device Type	Internal Tape Drive
Interface	SCSI-2 Fast/Wide
Format	8mm
Sustained Transfer Rate	3 MBPS, 6 MBPS
Size	5.25 in. quarter height
View	Top

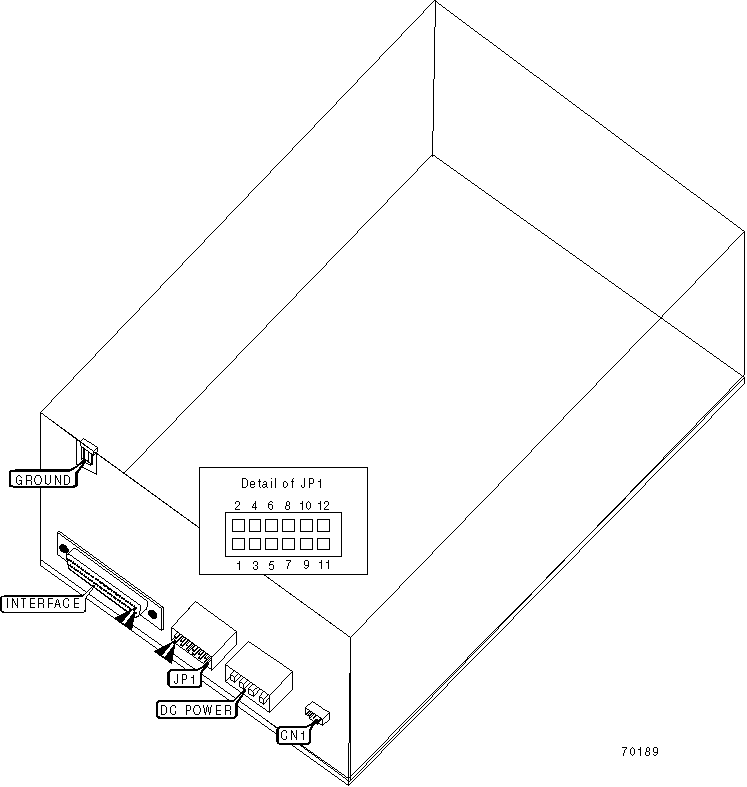

CONNECTIONS
Function	Label
Service port	CN1

USER CONFIGURABLE SETTINGS
Setting	Position
Termination enabled	Termination plug installed
Termination disabled	No termination plug installed
Note: If the drive is at the end of the SCSI chain, then you must install a terminator plug into the SCSI interface first and then plug the SCSI cable into the plug.

DRIVE SELECT ID
Drive ID	JP1/1&2	JP1/3&4	JP1/5&6	JP1/7&8	JP1/9&10	JP1/11&12
0	Open	Open	Open	Open	Open	Open
1	Open	Open	Open	Open	Open	Closed
2	Open	Open	Open	Open	Closed	Open
3	Open	Open	Open	Open	Closed	Closed
4	Open	Open	Open	Closed	Open	Open
5	Open	Open	Open	Closed	Open	Closed
6	Open	Open	Open	Closed	Closed	Open
7	Open	Open	Open	Closed	Closed	Closed
8	Open	Open	Closed	Open	Open	Open
9	Open	Open	Closed	Open	Open	Closed
10	Open	Open	Closed	Open	Closed	Open
11	Open	Open	Closed	Open	Closed	Closed
12	Open	Open	Closed	Closed	Open	Open
13	Open	Open	Closed	Closed	Open	Closed
14	Open	Open	Closed	Closed	Closed	Open
15	Open	Open	Closed	Closed	Closed	Closed

MANUFACTURERS RECOMMENDED MEDIA

Tape

IBM 59H2679

Sony QGD-170ME

Exabyte EXATAPE AME

Note: The tape capacities are not specified, however, the maximum compressed capacity is 40GB and the maximum capacity without compression is 20GB.

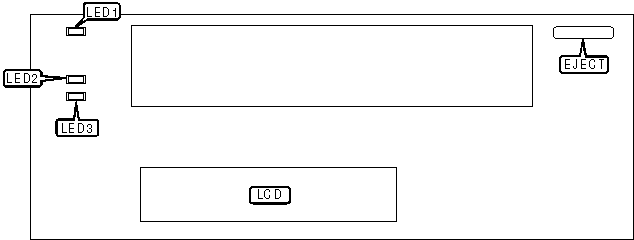

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Amber	Blinking	Error has occurred
LED1	Amber	On	Tape drive needs cleaning
LED1	Amber	Off	Tape drive is functioning properly
LED2	Green	On	Tape cartridge is loaded and functioning properly
LED2	Green	Off	No tape cartridge is loaded
LED3	Green	Blinking	Tape is in motion
LED3	Green	Off	Tape is not in use
