HP35470A Tape drive card Settings and Configuration
HEWLETT-PACKARD COMPANY
HP35470A
Device Type | Internal Tape Drive |
Interface | SCSI-2 |
Format | DDS |
Sustained Transfer Rate | 183 KBPS |
Size | 3.5 in. half height |

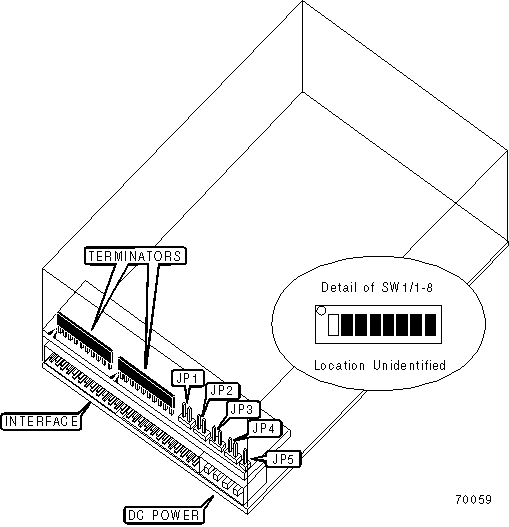

View | Top |
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
| » | Factory configured - do not alter | JP5 | Unidentified |
DRIVE SELECT ID | |||
Drive ID | JP2 | JP3 | JP4 |
0 | Open | Open | Open |
| 1 | Open | Open | Closed |
2 | Open | Closed | Open |
3 | Open | Closed | Closed |
4 | Closed | Open | Open |
5 | Closed | Open | Closed |
6 | Closed | Closed | Open |
7 | Closed | Closed | Closed |
TERMINATION POWER SELECTION | ||
Setting | JP1 | |
| » | TERMPWR supplied by drive | Open |
TERMPWR supplied by drive to SCSI interface | Closed | |
MANUFACTURERS RECOMMENDED MEDIA | |
Tape | Capacity |
60 meter DDS cartridge | 1.3GB |
90 meter DDS cartridge | 2.0GB |
DIAGNOSTIC LED(S) | ||
LED1 (Green/Yellow) | LED2 (Green/Yellow) | Condition |
Off | Off | No power/drive Idle, no cartridge |
Off | Flash (Green) | No cartridge, drive active |
On (Green) | Flash (Green) | Cartridge present, drive active |
On (Green) | On (Green) | Cartridge loaded, drive idle |
On (Green) | Off | Cartridge present but not loaded |
Pulse (Green) | Pulse (Green) | Cartridge loading or unloading |
Pulse (Yellow) | Pulse (Green) | Write protect cartridge loading or unloading |
On (Yellow) | On (Green) | Write protect cartridge loaded, drive idle |
On (Yellow) | Off | Write protect cartridge present but not loaded |
On (Yellow) | On (Green) | Write protect cartridge loaded, drive active |
On (Green) | Pulse (Green) | Caution (media warning) - cleaning tape required |
Pulse (Yellow) | On (Yellow) | Self test failed |
Pulse (Yellow) | Pulse (Yellow) | Drive powering on |
MISCELLANEOUS TECHNICAL NOTES |
Dip switch ‘SW1’ is not used on model HP35470A. All switches should be set to ON, or all switches should be set to OFF. |
