COLORADO 8GB INTERNAL, HP C4386B Tape drive card Settings and Configuration
HEWLETT-PACKARD COMPANY
COLORADO 8GB INTERNAL, HP C4386B
Device Type | Internal Tape Drive |
Interface | IDE(AT) |
Format | HP Colorado 8GB, QIC-WIDE |
Sustained Transfer Rate | 1.17 MBPS |
Size | 3.5 in. half height |

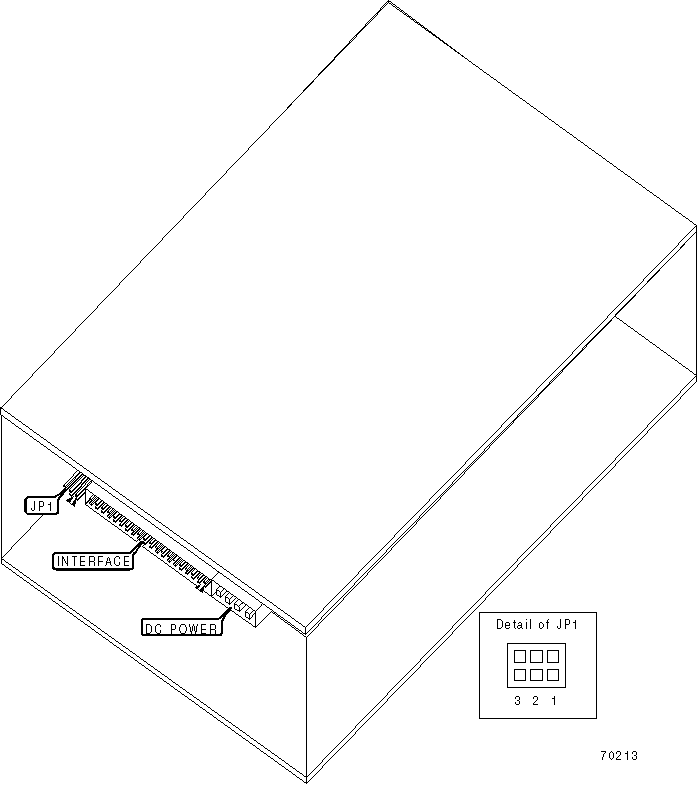

View | Top |
IDE MASTER/SLAVE | |||
Setting | JP1/1 | JP1/2 | JP1/3 |
Master in two drive system | Closed | Open | Open |
Slave in two drive system | Open | Closed | Open |
Master/Slave determined by Cable Select | Open | Open | Closed |
MANUFACTURERS RECOMMENDED MEDIA | ||
Tape | Capacity Without Compression | Capacity With Compression |
HP Colorado 8GB | 4GB | 8GB |
