SOUND IMAGE SYMPHONIC Sound card Settings and Configuration

Card Type	Sound card
Chip Set	OPTI 82C924
Maximum Onboard Memory	None
I/O Options	CD-ROM audio (3), CD-ROM interface (3), game/MIDI port, IDE interface, line in (2), line out (2), microphone in (2), speaker (2), wavetable
Data Bus	16-bit ISA
Floppy drives supported	None

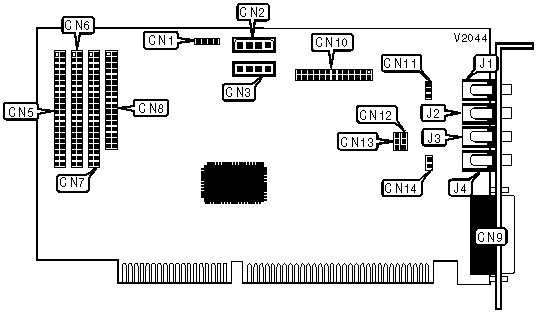

CONNECTIONS
Function	Label	Function	Label
Sony CD - audio in	CN1	Speaker	CN11
Panasonic CD - audio in	CN2	Line in	CN12
Mitsumi CD - audio in	CN3	Line out	CN13
IDE CD-ROM interface	CN5	Mic in	CN14
Panasonic CD-ROM interface	CN6	Speaker	J1
Mitsumi CD-ROM interface	CN7	Line out	J2
Sony CD-ROM interface	CN8	Line in	J3
Game/MIDI port	CN9	Mic in	J4
Wavetable	CN10
