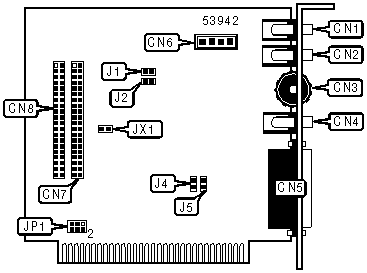

SC200 PLUS (REV. 2) Sound card Settings and Configuration

Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	None
I/O Options	Line in, microphone in, volume control, speaker out, game/MIDI port, audio in - CD-ROM, CD-ROM interface (2), PC speaker internal
Data Bus	8-bit ISA

CONNECTIONS
Function	Label	Function	Label
Line in	CN1	Audio in - CD-ROM	CN6
Microphone in	CN2	CD-ROM interface (Panasonic)	CN7
Volume control	CN3	CD-ROM interface (Mitsumi)	CN8
Speaker out	CN4	PC speaker - internal	J2
Game/MIDI port	CN5

USER CONFIGURABLE SETTINGS
Function	Label	Position
Speaker enabled	J1	Closed
Speaker disabled	J1	Open
Programmable EEPROM enabled	JX1	Closed
Programmable EEPROM disabled	JX1	Open

VIRTUAL PARALLEL PORT SELECTION
Setting	JP4	JP5
Enabled	Closed	Closed
Disabled	Open	Open

MITSUMI INTERRUPT SELECTION
IRQ	JP1/pins 1 & 2	JP1/pins 3 & 4	JP1/pins 5 & 6
11	Closed	Open	Open
12	Open	Closed	Open
15	Open	Open	Closed
