SOUNDPLUS-ES488 Sound card Settings and Configuration

Card Type	Sound
Chipset Controller	ES-488
I/O Options	Game port (1), Line-in (1), Microphone jack (1), Speaker jack (1), Volume
Maximum Dram	N/A

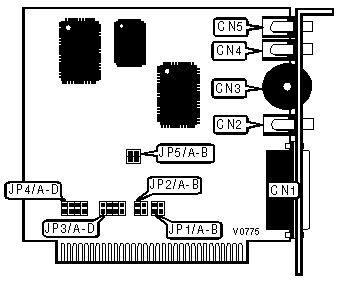

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin Game port	CN1	Line-in jack	CN4
Speaker jack	CN2	Microphone jack	CN5
Volume Control	CN3

GAME PORT SELECT
Setting	JP5/A	JP5/B
Enabled	Closed	Open
Disabled	Open	Closed

DRQ SELECT
Setting		JP1/A	JP1/B
»	DRQ1	Closed	Open
	DRQ3	Open	Closed

DACK SELECT
Setting		JP2/A	JP2/B
»	DACK1	Closed	Open
	DACK3	Open	Closed

INTERRUPT SELECT
IRQ		JP3/A	JP3/B	JP3/C	JP3/D
»	IRQ7	Open	Open	Open	Closed
	IRQ2	Closed	Open	Open	Open
	IRQ3	Open	Closed	Open	Open
	IRQ5	Open	Open	Closed	Open

I/O ADDRESS SELECT
Address		JP4/A	JP4/B	JP4/C	JP4/D
»	220h	Closed	Closed	Open	Open
	240h	Open	Open	Closed	Closed
