PRO AUDIO SPECTRUM 16 BASIC (650-0053-52) Sound card Settings and Configuration

MEDIA VISION TECHNOLOGY, INC.

PRO AUDIO SPECTRUM 16 BASIC (650-0053-52)

Card Type
Sound card
Chip Set
Unidentified
Maximum Onboard Memory
Unidentified
I/O Options
Game/MIDI port, audio in, microphone in, stereo line in, stereo line out
Data Bus
16-bit ISA

CONNECTIONS
Function
Label
Function
Label
Game/MIDI port
CN1
Stereo line in
CN4
Microphone in
CN2
Audio in - CD-ROM
J10
Stereo line out
CN3

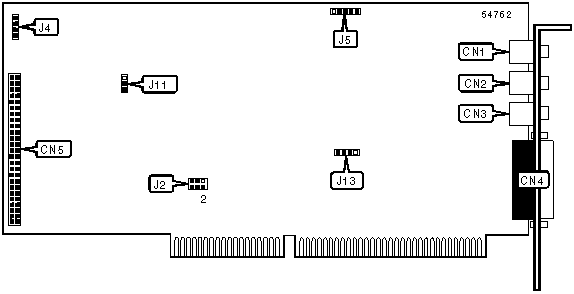

BOARD ID SELECTION
Setting
J2/pins 1 & 2
J2/pins 3 & 4
J2/pins 5 & 6
»
0
Open
Open
Open

1
Closed
Open
Open

2
Open
Closed
Open

3
Closed
Closed
Open

4
Open
Open
Closed
Note: When ID 4 is selected, the base I/O address is forced to 388h. For all other ID’s the software scans for available settings. Refer to the manufacturer’s documentation for possible settings.
