RADIOWAVE 64-E (SF64-PCE) Sound card Settings and Configuration

Card Type	Sound card
Chip Set	Roland
Maximum Onboard Memory	Unidentified
I/O Options	Game port, FM radio, audio line-in, microphone, speaker connector, antenna, audio CD
Data Bus	32-bit PCI

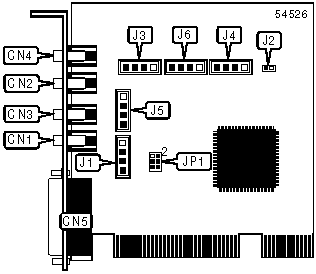

CONNECTIONS
Function	Label	Function	Label
Speaker connector	CN1	PC speaker input connector	J2
Line in	CN2	Audio CD input connector	J3
Microphone in	CN3	Auxiliary input connector	J4
Antenna in	CN4	Microphone in	J5
MIDI/Game port	CN5	TAD connector	J6
Speaker-out connector	J1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Output via speaker	JP1	Pins 1 & 2, 4 & 5 closed
	Output via line out	JP1	Pins 2 & 3, 5 & 6 closed
