ISA SOUND CARD Sound card Settings and Configuration

Card Type	Sound card
Chip Set	Unidentified
I/O Options	CD-ROM interfaces (3), game/MIDI port, line in, microphone in, speaker out, line out, CD-ROM audio in (2)
Data Bus	16-bit ISA

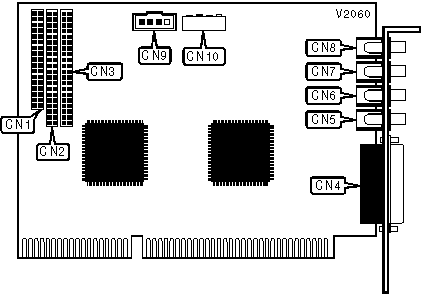

CONNECTIONS
Function	Label	Function	Label
Sony CD-ROM interface	CN1	Line out	CN6
CD-ROM interface	CN2	Line in	CN7
CD-ROM interface	CN3	Speaker out	CN8
Game/MIDI port	CN4	CD audio in	CN9
Microphone in	CN5	CD audio in	CN10
Note:Either CN2 or CN3 is an IDE type interface.
