EASY OPTIONS GAME & AUDIO CARD AC525 Sound card Settings and Configuration

Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	N/A
I/O Options	Game/MIDI port, microphone in, speaker, volume
Data Bus	8-bit ISA
Floppy drives supported	N/A

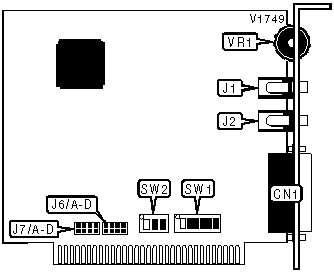

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	Mic in	J2
Speaker	J1	Volume	VR1

USER CONFIGURABLE SETTINGS
Function		Label	Position
	MIDI port disabled	SW1/1	On
	MIDI port enabled	SW1/1	Off
»	Factory configured - do not alter	SW1/5	Unidentified
	Game port disabled	SW1/6	On
	Game port enabled	SW1/6	Off
»	Factory configured - do not alter	SW2/1	Unidentified

GAME/MIDI PORT INTERRUPT SELECTION
IRQ		J6/A	J6/B	J6/C	J6/D
	2	Closed	Open	Open	Open
	3	Open	Closed	Open	Open
	5	Open	Open	Closed	Open
»	7	Open	Open	Open	Closed

AUDIO INTERRUPT SELECTION
IRQ		J7/A	J7/B	J7/C	J7/D
	2	Closed	Open	Open	Open
	3	Open	Closed	Open	Open
»	5	Open	Open	Closed	Open
	7	Open	Open	Open	Closed

DIGITAL AUDIO BASE I/O ADDRESS SELECTION
Address		SW1/2	SW1/3	SW1/4
	210h	On	On	Off
»	220h	Off	Off	Off
	230h	On	Off	Off
	240h	Off	On	On
	250h	Off	On	Off
	260h	Off	Off	On
	Disabled	On	On	On

GAME/MIDI PORT BASE I/O ADDRESS SELECTION
Address		SW2/2	SW2/3
	300h	On	On
	310h	Off	On
	320h	On	Off
»	330h	Off	Off
