SOUNDTRACK 97 PCI Sound card Settings and Configuration

HANME INTERNATIONAL

SOUNDTRACK 97 PCI

Card Type
Sound card
Chip Set
Unidentified
Maximum Onboard Memory
64MB
I/O Options
Game/MIDI port, speaker jack (2), audio in - CD-ROM (2), line in (2) microphone in, video in, phone in
Data Bus
32-bit PCI
Card Size
Half height, half length

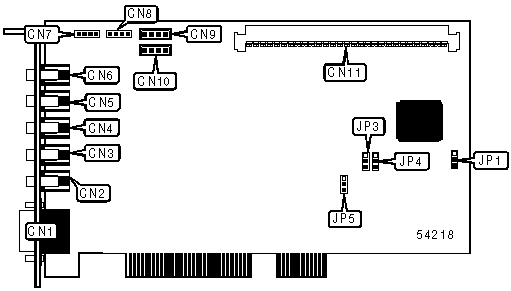

CONNECTIONS
Function
Label
Function
Label
Game/MIDI port
CN1
Phone in
CN7
Speaker jack (front)
CN2
Video in
CN8
Speaker jack (rear)
CN3
Audio in - CD-ROM
CN9
Line 1 in
CN4
Audio in - CD-ROM
CN10
Line 2 in
CN5
72 pin SIMM connector
CN11
Microphone in
CN6

USER CONFIGURABLE SETTINGS
Function
Label
Position
Automatic reset feature for PC’s with PCI BIOS v.1.0 or 1.0a enabled
JP5
Pins 2 & 3 closed
Automatic reset feature for PC’s with PCI BIOS v.2.0 or 2.1a enabled
JP5
Pins 1 & 2 closed

MAIN BOARD COMPATABILITY SELECTION
System
JP3
JP4
»
Intel FX/VX/HX, OPTI, & VIA chipsets
Pins 1 & 2 closed
Pins 1 & 2 closed

Intel TX chipset
Pins 2 & 3 closed
Pins 2 & 3 closed
Note: Only INTEL, OPTI, & New VIA chipset main boards are supported by the Soundtrack 97 PCI.

DRAM JUMPER CONFIGURATION
Size
JP1
»
4MB SIMM
Pins 1 & 2 closed
»
16MB SIMM (option 1)
Pins 1 & 2 closed

16MB SIMM (option 2)
Pins 2 & 3 closed

64MB SIMM
Pins 2 & 3 closed
Note: Sound card will not function without a memory SIMM. Do not use other commercially available 8MB or 32MB SIMMs with the Soundtrack 97 PCI. 8MB and 32MB capacities may be supported by special SIMMS available from Hanmesoft.
