SOUNDBLASTER PRO MCV (CT5330) Sound card Settings and Configuration

CREATIVE LABS, INC.

SOUNDBLASTER PRO MCV (CT5330)

Card Type
Sound card
Chip Set
Unidentified
Maximum Onboard Memory
None
I/O Options
Line in connector, microphone in connector, speaker out connector, game/MIDI port, CD-ROM audio in connector, PC internal speaker
Data Bus
MCA

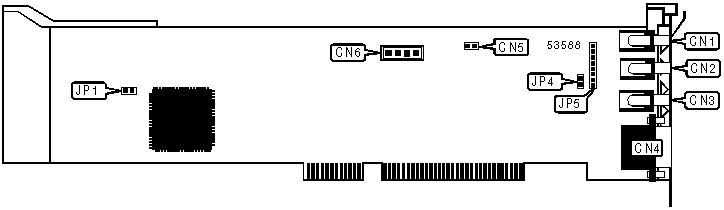

CONNECTIONS
Function
Label
Function
Label
Line in connector
CN1
Game/MIDI port
CN4
Microphone connector
CN2
PC internal speaker
CN5
Speaker out connector
CN3
CD-ROM audio in connector
CN6

USER CONFIGURABLE SETTINGS
Function
Label
Position

Joystick enabled
JP1
Closed

Joystick disabled
JP1
Open
»
Factory configured – do not alter
JP4
Unidentified
»
Factory configured – do not alter
JP5
Unidentified
