ADVANCED WAVE TABLE UPGRADE, Sound card Settings and Configuration

Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	28MB DRAM
I/O Options	Line out, SPDIF (digital interface format) connector
Data Bus	16-bit ISA

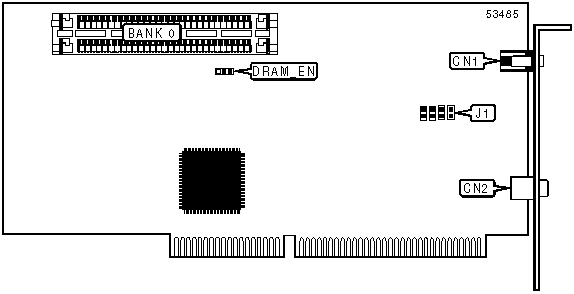

CONNECTIONS
Function	Label	Function	Label
Line out	CN1	SPDIF (digital interface format) connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	512KB DRAM enabled	DRAM_EN	Pins 2 & 3 closed
	512KB DRAM disabled - SIMM RAM module enabled	DRAM_EN	Pins 1 & 2 closed
	Audio connectors to motherboard	J1	Open

DRAM CONFIGURATION

Note: Memory can be upgraded to 28MB, how ever configuration is unidentified.
