16-BIT AUDIO CARD (MIDI VER.3) Sound card Settings and Configuration

Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Game/MIDI port, CD-ROM audio in, microphone in, line in, line out, speaker out, wavetable connector, PC speaker connector
Data Bus	16-bit ISA

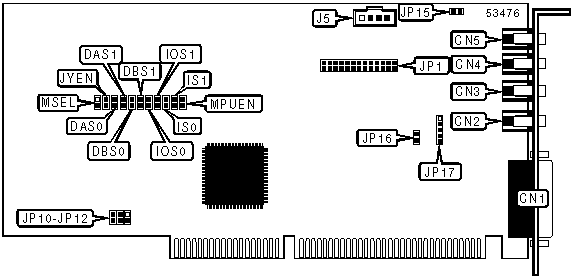

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	Audio in - CD-ROM	J5
Speaker out	CN2	Wavetable connector	JP1
Line out	CN3	PC Speaker connector	JP15
Microphone in	CN4	Unidentified	JP16
Line in	CN5	Unidentified	JP17

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	MPU I/O address 330h	MSEL	Closed
	MPU I/O address 300h	MSEL	Open
»	MPU-401 enabled	MPUEN	Closed
	MPU-401 disabled	MPUEN	Open
»	Joystick enabled	JYEN	Closed
	Joystick disabled	JYEN	Open

BASE I/O ADDRESS
Setting		IOS0	IOS1
»	220h	Closed	Closed
	240h	Closed	Open
	260h	Open	Closed
	280h	Open	Open

LOW DMA CHANNEL SELECTION
Setting		DAS0	DAS1
	DMA 0	Closed	Closed
»	DMA 1	Open	Closed
	DMA 3	Closed	Open
	Disabled	Open	Open

HIGH DMA CHANNEL SELECTION
Setting		DBS0	DBS1
»	DMA 5	Closed	Closed
	DMA 6	Open	Closed
	DMA 7	Closed	Open
	Low DMA enabled	Open	Open

INTERRUPT SELECTION
IRQ		IS0	IS1
	2	Closed	Closed
»	5	Closed	Open
	7	Open	Closed
	10	Open	Open

MITSUMI INTERRUPT SELECTION
IRQ	JP10	JP11	JP12
3	Closed	Open	Open
10	Open	Closed	Open
11	Open	Open	Closed
Disable	Open	Open	Open
