PCI-AXP201 Sound card Settings and Configuration

Card Type	Sound card
Chip Set	ESS
Maximum Onboard Memory	2MB DRAM & 128K SRAM
I/O Options	game/MIDI port, speaker out, line in, line out, microphone in, audio in - CD-ROM, upgrade card, I2S, auxiliary audio in (2), mono audio in
Data Bus	32-bit PCI
Card Size	Half-length, full-height card

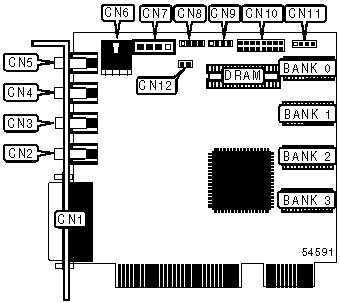

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	Audio in - CD-ROM	CN7
Microphone in jack	CN2	Auxiliary audio in	CN8
Line in jack	CN3	Auxiliary audio in	CN9
Line out jack	CN4	Upgrade card connector	CN10
Speaker out jack	CN5	I2S connector	CN11
Audio in - CD-ROM	CN6	Audio in - mono	CN12

DRAM CONFIGURATION
Size	BANK 0
0MB	None
2MB	1MB x 16

SRAM CONFIGURATION
Size	Bank 1	Bank 2	Bank 3	Bank 4
32KB	(1) 32KB x 8	None	None	None
64KB	(1) 32KB x 8	(1) 32KB x 8	None	None
96KB	(1) 32KB x 8	(1) 32KB x 8	(1) 32KB x 8	None
128KB	(1) 32KB x 8	(1) 32KB x 8	(1) 32KB x 8	(1) 32KB x 8
