ZX344 NETBLASTER 800 Network Card Settings and Configuration

NIC Type	Ethernet
Network Transfer Rate	100Mbps
Data Bus	PCI 32-bit
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Not available

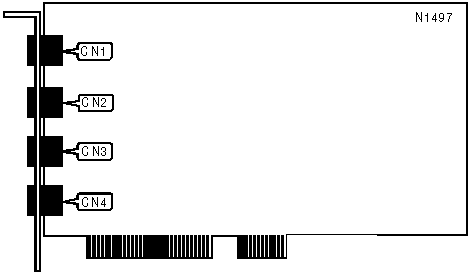

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port 1	CN1	Unshielded twisted pair port 3	CN3
Unshielded twisted pair port 2	CN2	Unshielded twisted pair port 4	CN4
