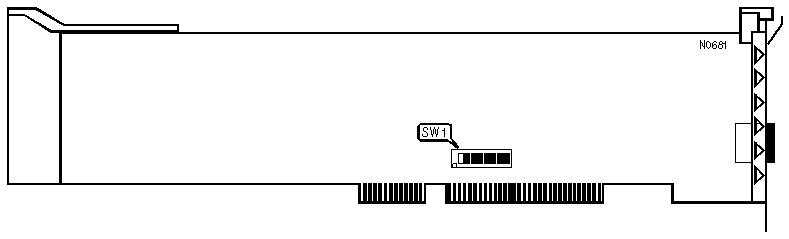

DL/2 Network Card Settings and Configuration
UNIDENTIFIED
DL/2
NIC Type | Local Talk |
Transfer Rate | 230.4Kbps |
Data Bus | 16-bit MCA |
Topology | Star |
Wiring Type | Local Talk, PhoneNET or compatible |
Boot ROM | Not available |
INTERRUPT SELECT | ||||
IRQ | SW1/1 | SW1/2 | SW1/3 | |
» | IRQ5 | Off | Off | On |
| IRQ3 | On | Off | Off |
| IRQ4 | Off | On | Off |
| Disabled | Off | Off | Off |
I/O ADDRESS CONFIGURATION | |||||
Address | SW1/5 | SW1/6 | SW1/7 | SW1/8 | |
» | 240h | On | On | Off | On |
| 260h | On | On | Off | Off |
| 2A0h | On | Off | On | Off |
| 320h | Off | On | On | Off |
| 340h | Off | On | Off | On |
| 200h | On | On | On | On |
FACTORY CONFIGURED SETTINGS | |
Switch | Setting |
SW1/4 | Off |
