E2000HUB Network Card Settings and Configuration

Card Type	Ethernet hub
I/O Options	Expansion port
Network Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Available

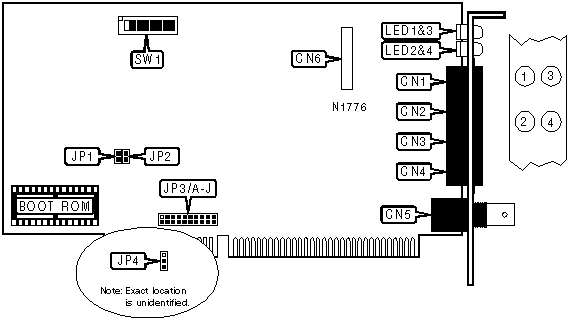

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port 1	CN1	Unshielded twisted pair port 4	CN4
Unshielded twisted pair port 2	CN2	RG-58A/U 50ohm coaxial connector	CN5
Unshielded twisted pair port 3	CN3	Expansion port	CN6

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Boot ROM enabled	JP1	Closed
	Boot ROM disabled	JP1	Open
»	Card is installed in standard AT	JP2	Open
	Card is installed in non-compatible AT	JP2	Closed

CABLE TYPE
Setting		JP4
»	RG-58A/U 50ohm coaxial	Pins 2 & 3 closed
	Unshielded twisted pair	Pins 1 & 2 closed

BASE I/O ADDRESS
Setting		SW1/1	SW1/2	SW1/3	SW1/4
	200h	On	On	On	On
	220h	On	On	On	Off
	240h	On	On	Off	On
	260h	On	On	Off	Off
	280h	On	Off	On	On
	2A0h	On	Off	On	Off
	2C0h	On	Off	Off	On
	2E0h	On	Off	Off	Off
»	300h	Off	On	On	On
	320h	Off	On	On	Off
	340h	Off	On	Off	On
	360h	Off	On	Off	Off
	380h	Off	Off	On	On
	3A0h	Off	Off	On	Off
	3C0h	Off	Off	Off	On
	3E0h	Off	Off	Off	Off

BOOT ROM ADDRESS
Setting		SW1/5	SW1/6	SW1/7	SW1/8
	C0000h	On	On	On	On
	C4000h	On	On	On	Off
»	C8000h	On	On	Off	On
	CC000h	On	On	Off	Off
	D0000h	On	Off	On	On
	D4000h	On	Off	On	Off
	D8000h	On	Off	Off	On
	DC000h	On	Off	Off	Off
	E0000h	Off	On	On	On
	E4000h	Off	On	On	Off
	E8000h	Off	On	Off	On
	EC000h	Off	On	Off	Off
	F0000h	Off	Off	On	On
	F4000h	Off	Off	On	Off
	F8000h	Off	Off	Off	On
	FC000h	Off	Off	Off	Off

INTERRUPT
Setting		JP3/A	JP3/B	JP3/C	JP3/D	JP3/E
	IR/FONT>	Closed	Open	Open	Open	Open
»	IRQ3	Open	Closed	Open	Open	Open
	IRQ4	Open	Open	Closed	Open	Open
	IRQ5	Open	Open	Open	Closed	Open
	IRQ7	Open	Open	Open	Open	Closed
	IRQ10	Open	Open	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open
	IRQ12	Open	Open	Open	Open	Open
	IRQ14	Open	Open	Open	Open	Open
	IRQ15	Open	Open	Open	Open	Open

INTERRUPT (CON’T)
Setting		JP3/F	JP3/G	JP3/H	JP3/I	JP3/J
	IR/FONT>	Open	Open	Open	Open	Open
»	IRQ3	Open	Open	Open	Open	Open
	IRQ4	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Open	Open
	IRQ10	Closed	Open	Open	Open	Open
	IRQ11	Open	Closed	Open	Open	Open
	IRQ12	Open	Open	Closed	Open	Open
	IRQ14	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Unshielded twisted pair port 1 is receiving data
LED1	Yellow	On	Unshielded twisted pair port 1 is transmitting data
LED1	N/A	Off	Unshielded twisted pair port 1 is not transmitting or receiving data
LED2	Green	On	Unshielded twisted pair port 2 is receiving data
LED2	Yellow	On	Unshielded twisted pair port 2 is transmitting data
LED2	N/A	Off	Unshielded twisted pair port 2 is not transmitting or receiving data
LED3	Green	On	Unshielded twisted pair port 3 is receiving data
LED3	Yellow	On	Unshielded twisted pair port 3 is transmitting data
LED3	N/A	Off	Unshielded twisted pair port 3 is not transmitting or receiving data
LED4	Green	On	Unshielded twisted pair port 4 is receiving data
LED4	Yellow	On	Unshielded twisted pair port 4 is transmitting data
LED4	N/A	Off	Unshielded twisted pair port 4 is not transmitting or receiving data
