ETHER-16C Network Card Settings and Configuration







TRENDWARE INTERNATIONAL, INC.

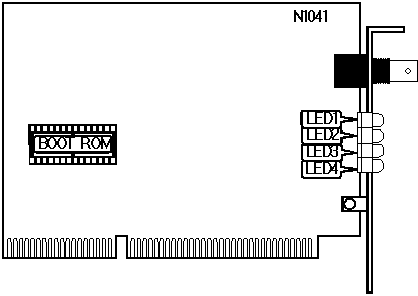

ETHER-16C

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus

Wiring Type

RG-58A/U 50ohm coaxial

Boot ROM

Available

DIAGNOSTIC LED(S)

LED

Status

Condition

LED1

On

Power on

LED1

Off

Power off

LED2

On

Link is good

LED2

Off

Link is broken

LED3

On

Collision detected on network

LED3

Off

No collision detected on network

LED4

On

Card is transmitting for an extended period (Jabber)

LED4

Off

Normal operation
