32-BIT PCI ETHERNET (TL4500) Network Card Settings and Configuration
TOPLINK C&C CORPORATION
32-BIT PCI ETHERNET (TL4500)
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 32-bit PCI |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port (optional) |
Boot ROM | Available |

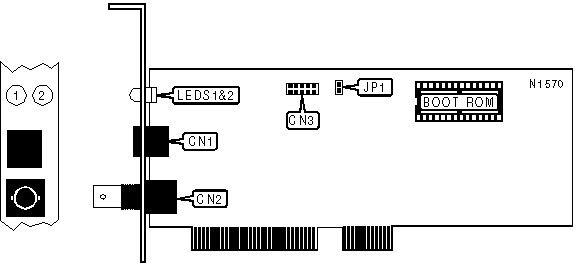

CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair port | CN1 | AUI transceiver via DB-15 port | CN3 |
RG-58A/U 50ohm coaxial port | CN2 | ||
CONNECTIONS | ||
Type | JP1 | |
AUI transceiver via DB-15 port | Open | |
| » | RG-58A/U 50ohm coaxial | Closed |
Unshielded twisted pair | Closed | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | 10Base-T network connection is good |
LED1 | Green | Off | 10Base-T network connection is broken |
LED2 | Yellow or Red | On | Power is on |
LED2 | Yellow or Red | Blinking | Data is being transmitted/received |
LED2 | Yellow or Red | Off | Power is off |
Note: The locations of LED1 and LED2 are unidentified. | |||
