LanCard/A * PC & LanCard/A * PC HiZ Network Card Settings and Configuration
TIARA COMPUTER SYSTEMS, INC.
LanCard/A * PC & LanCard/A * PC HiZ

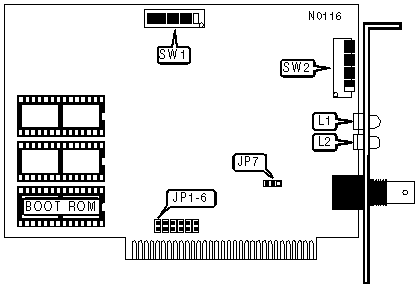

NIC Type | ARCnet |
Transfer Rate | 2.5Mbps |
Data Bus | 8-bit ISA |
Topology | Star (PC) Linear Bus (PC HiZ) |
Wiring Type | RG-62A/U 93ohm coaxial (PC and PC HiZ) RG-58A/U 50ohm coaxial (HiZ only) |
Boot ROM | Available |
NODE ADDRESS | ||||||||
Node | SW2/1 | SW2/2 | SW2/3 | SW2/4 | SW2/5 | SW2/6 | SW2/7 | SW2/8 |
0 | - | - | - | - | - | - | - | - |
1 | Off | Off | Off | Off | Off | Off | Off | On |
2 | Off | Off | Off | Off | Off | Off | On | Off |
3 | Off | Off | Off | Off | Off | Off | On | On |
4 | Off | Off | Off | Off | Off | On | Off | Off |
251 | On | On | On | On | On | Off | On | On |
252 | On | On | On | On | On | On | Off | Off |
253 | On | On | On | On | On | On | Off | On |
254 | On | On | On | On | On | On | On | Off |
255 | On | On | On | On | On | On | On | On |
Note: Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 8 is the Least Significant Bit and switch 1 is the Most Significant Bit. The switches have the following decimal values: switch 8=1, 7=2, 6=4, 5=8, 4=16, 3=32, 2=64, 1=128. Turn on the switches and add the values of the on switches to obtain the correct node address. (On=1, Off=0) | ||||||||
INTERRUPT REQUEST | ||||||
IRQ | JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
2 | Closed | Open | Open | Open | Open | Open |
3 | Open | Closed | Open | Open | Open | Open |
4 | Open | Open | Closed | Open | Open | Open |
5 | Open | Open | Open | Closed | Open | Open |
6 | Open | Open | Open | Open | Closed | Open |
7 | Open | Open | Open | Open | Open | Closed |
ENHANCED DIAGNOSTICS ENABLE | ||
Setting | JP7 | |
» | Disabled | Pins 1 & 2 closed |
| Enabled | Pins 2 & 3 closed |
Note: The enhanced diagnostics are compatible only with the driver that was shipped with this card. | ||
I/O BASE ADDRESS | ||||
Address | SW1/1 | SW1/2 | SW1/3 | |
» | 2E0h | Off | On | Off |
| 260h | Off | Off | Off |
| 290h | Off | Off | On |
| 2B0h | Off | On | On |
| 300h | On | Off | Off |
| 350h | On | Off | On |
| 380h | On | On | On |
| 3E0h | On | On | On |
RIM BUFFER ADDRESS CONFIGURATION | ||||
Buffer Address | SW1/4 | SW1/5 | SW1/6 | |
» | D0OO-D3FFH | On | Off | Off |
| C0OO-C3FFH | Off | Off | Off |
| C4OO-C7FFH | Off | Off | On |
| CCOO-CFFFH | Off | On | On |
| D4OO-D7FFH | On | Off | On |
| D8OO-DBFFH | On | On | Off |
| DCOO-DFFFH | On | On | On |
| E000-E3FFH | Off | On | Off |
Note: The lower 8K of the address above is used as a network data buffer. The upper 8K is where the Boot ROM is loaded into system memory. | ||||
CABLE LENGTH AND RESPONSE/RECONFIGURATION TIMEOUTS | |||||
Maximum Length | Response Time | Reconfiguration | SW1/7 | SW1/8 | |
» | 4.8 miles | 74.7µs | 840ms | On | On |
| 21.0 miles | 283.4µs | 1680ms | On | Off |
| 42.5 miles | 561.8µs | 1680ms | Off | On |
| 85.6 miles | 1118.6µs | 1680ms | Off | Off |
Note: Maximum length is the distance between the two farthest cards on the network. All cards on a segment must have this option set the same. | |||||
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
L1 | Red | On | Data is being received |
L1 | Red | Off | Data is not being received |
L1 | Red | Blinking | Card is reconfiguring |
L2 | Green | On | Data is being transmitted |
L2 | Green | Off | Data is not being transmitted |
L2 | Green | Blinking | Card is reconfiguring |
Note: If LEDs L1 & L2 continue to blink for an extended amount of time, this indicates a network problem such as a defective card, a broken network connection, or a hub failure. | |||
