TC5143-2 Network Card Settings and Configuration

THOMAS-CONRAD CORPORATION

TC5143-2

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
8-bit ISA/16-bit ISA
Topology
Linear Bus
Wiring Type
RG-58A/U 50ohm coaxial
AUI transceiver via DB-15 port
Boot ROM
Available

ROM TYPE SELECT
Type
JP1
Remote Reset ROM
Open
Flash ROM
Closed

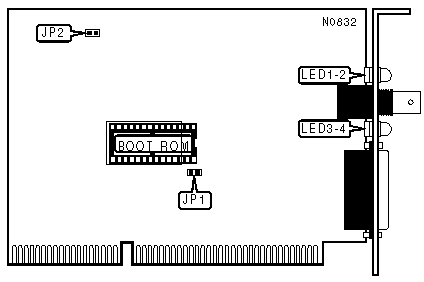

Note: The ROM socket is 32 pins, but the Flash ROM is only 28 pins. The red box on the diagram shows the proper positioning for the installation of a Flash ROM.

CONFIGURATION OVERRIDE
Mode
JP2
Normal
Open
Force default configuration
Closed

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Yellow
On
Data is being transmitted
LED1
Yellow
Off
Data is not being transmitted
LED2
Green
On
Data is being received
LED2
Green
Off
Data is not being received
LED3
Yellow
On
Collision detected
LED3
Yellow
Off
Collision not detected
LED4
Green
N/A
Should not be lit
