TC5047 Network Card Settings and Configuration







THOMAS-CONRAD CORPORATION

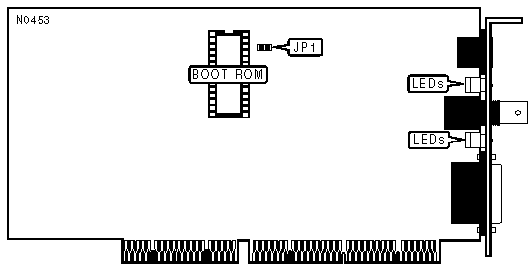

TC5047

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

32-bit EISA

Topology

Linear (10Base2)

Star (10BaseT)

Wiring Type

RG58A/U 50ohm coaxial (10Base 2)

AUI transceiver via DB-15 port (10Base2)

Unshielded twisted pair (10Base T)

Boot ROM

Available

BOOT ROM

Setting

JP1

Disabled

Open



Enabled

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

Off

Data is not being transmitted

LED1

Yellow

Blinking

Data is being transmitted

LED2

Green

Off

Data is not being received

LED2

Green

Blinking

Data is being received

LED3

Yellow

Off

No collision detected on network

LED3

Yellow

Blinking

Collision detected on network

LED4

Green

On

10BaseT link integrity exists

LED4

Green

Off

10BaseT link integrity broken

Note:LED4 is only functional when installed on a 10BaseT network.
