SK-NET G32+ Network Card Settings and Configuration







SYSKONNECT, INC.

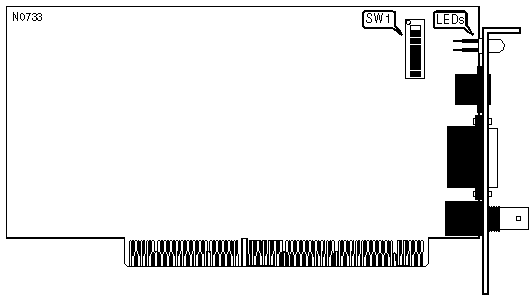

SK-NET G32+

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit EISA

Topology

Linear bus

Star

Wiring Type

Unshielded twisted pair

Boot ROM

Not available

CABLE TYPE

Type

SW1/switches 1 - 8

All types other than IBM type 1

On



IBM type 1

Off

DIAGNOSTIC LEDS

LED

Color

Status

Condition

LED1

Unknown

Off

Polarity normal

LED1

Unknown

On

Polarity reversed

LED2

Unknown

Off

Network connection is broken

LED2

Unknown

On

Network connection is good
