SK-NET FLASH 10/100 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10/100Mbps
Data Bus	PCI
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Not available

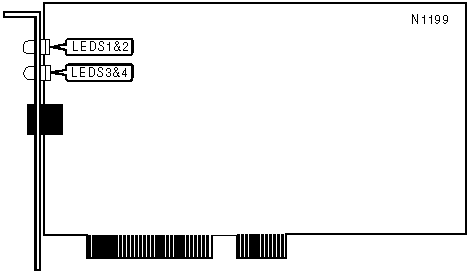

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Card is transmitting at 100Mbps
LED1	Yellow	Off	Card is not transmitting at 100Mbps
LED2	Yellow	On	Card is transmitting at 10Mbps
LED2	Yellow	Off	Card is not transmitting at 10Mbps
LED3	Green	On	Network connection is good
LED3	Green	Off	Network connection is broken
LED4	Green	Blinking	Data is being transmitted/received
LED4	Green	Off	Data is not being transmitted/received
