TROPIC 4/16 TOKEN RING Network Card Settings and Configuration

NIC Type	Token Ring
Network Transfer Rate	4/16Mbps
Data Bus	16-bit ISA
Topology	Ring
Wiring Type	Shielded twisted pair Unshielded twisted pair
Boot ROM	Not available

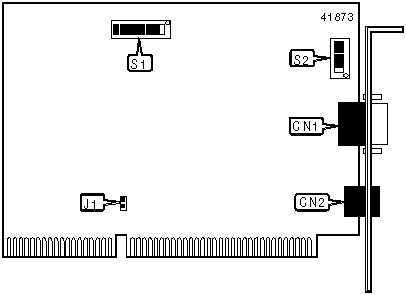

CONNECTIONS
Function	Label	Function	Label
Shielded twisted pair	CN1	Unshielded twisted pair	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	External BIOS RPL enabled	J1	Closed
	External BIOS RPL disabled	J1	Open
»	Primary address selected	S2/1	Off
	Secondary address selected	S2/1	On
»	8 bit or 16 bit auto-sense selected	S2/2	Off
	Force 8 bit bus use	S2/2	On

NETWORK SPEED SELECTION
Speed		S2/3
	4Mbps	Off
»	16Mbps	On

BASE I/O ADDRESS SELECTION
Address	S1/1	S1/2	S1/3	S1/4	S1/5	S1/6
CC000h	On	Off	Off	On	On	Off
DC000h	On	Off	On	On	On	Off
A0000h	Off	On	Off	Off	Off	Off
A2000h	Off	On	Off	Off	Off	On
A4000h	Off	On	Off	Off	On	Off
F4000h	On	On	On	Off	On	Off
F6000h	On	On	On	Off	On	On
F8000h	On	On	On	On	Off	Off
FA000h	On	On	On	On	Off	On
FE000h	On	On	On	On	On	On

INTERRUPT SELECTION
IRQ		S2/4	S2/5
»	2	Off	Off
	3	Off	On
	6	On	Off
	7	On	On

SHARED RAM SIZE SELECTION
Size		S1/7	S1/8
	8KB	Off	Off
»	16KB	Off	On
	32KB	On	Off
	64KB	On	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	On	16Mbps ring speed operation
LED1	Red	Off	4Mbps ring speed operation
LED2	Green	On	Network connection is good
LED2	Green	Off	Network connection is broken
Note: The location of LED1 and LED2 are unidentified
