ET16/P-S2 Network Card Settings and Configuration







SYNAPSE TECHNOLOGIES, INC.

ET16/P-S2

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus, Star

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Boot ROM

Available

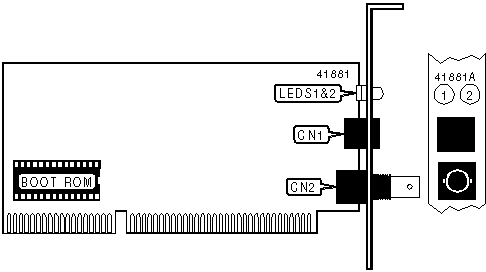

CONNECTIONS

Function

Label

Function

Label

Unshielded twisted pair port

CN1

RG-58A/U 50ohm coaxial port

CN2

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

10Base-T network connection is good

LED1

Green

Blinking

10Base-T network connection is faulty

LED1

Green

Off

10Base-T network connection is broken

LED2

Yellow

On

Polarity is reversed

LED2

Yellow

Off

Polarity is good
