FD601T Network Card Settings and Configuration

SVEC COMPUTER CORPORATION

FD601T

NIC Type
Ethernet
Network Transfer Rate
10Mbps
Data Bus
PCMCIA Type II
Topology
Star
Wiring Type
Unshielded twisted pair
Boot ROM
Not available

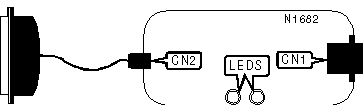

CONNECTIONS
Function
Label
Function
Label
Unshielded twisted pair port
CN1
15-pin PCMCIA card connector
CN2

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
Blinking
Data is being transmitted/received
LED1
Green
Off
Data is not being transmitted/received
LED2
Green
On
Network connection is good
LED2
Green
Off
Network connection is broken
Note:The relative location of LED1 to LED2 is unidentified.
