ETHERMODEM PCMCIA ADAPTER Network Card Settings and Configuration

Card Type	Fax, Modem (synchronous/asynchronous), Network Interface Card
Chip Set	Unidentified
NIC Type	Ethernet
Maximum Network Rate	10Mbps
Maximum Modem Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	PCMCIA Type II
Fax Class	Class I & II
Data Modulation Protocol	Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP10, V.42bis
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Not available

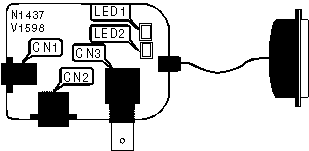

CONNECTIONS
Function	Label	Function	Label
Line out - RJ-11	CN1	10Base-2 - RG-58A/U	CN3
10Base-T - RJ-45	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED 1	Green	On	Data is transmitted
LED 1	Green	Off	Data is not transmitted
LED 2	Yellow	On	10Base-T link integrity exists
LED 2	Yellow	Off	10Base-T link integrity broken

AUTO-RETRAIN - AUTO-FALLBACK/FALL-FORWARD
Type:	Configuration
Format:	AT [cmds] %E n [cmds]
Description:	Controls auto-retrain mode and fallback/fall-forward
Command	Function
%E0	Auto-retrain disabled
%E1	Auto-retrain enabled
%E2	Auto-fallback/fall-forward enabled

BIT-MAPPED REGISTERS
Register	Default
S14	Unidentified
S16	Unidentified
S21	Unidentified
S22	Unidentified
S23	Unidentified
S27	Unidentified
S28	Unidentified
S31	Unidentified
S39	Unidentified
S40	Unidentified
S41	Unidentified
S201	Unidentified
S202	Unidentified

BREAK SEND
Type:	Configuration
Format:	AT [cmds] \B n [cmds]
Default:	Unidentified
Range:	Unidentified
Unit:	.1 second
Description:	Sends break to modem

BREAK TYPE
Type:	Configuration
Format:	AT [cmds] \K n [cmds]
Description:	Configures action of break signal
Command	Break from DTE	Modem receives \B	Break received from remote modem
\K0	Online command mode enabled, send no break to remote modem	Break sent to remote modem and buffered cleared	Buffers cleared, break sent to DTE
\K1	Break sent to remote modem and buffered cleared	Break sent to remote modem and buffered cleared	Buffers cleared, break sent to DTE
\K2	Online command mode enabled, send no break to remote modem	Send break to remote modem immediately	Break sent immediately to DTE
\K3	Send break to remote modem immediately	Send break to remote modem immediately	Break sent immediately to DTE
\K4	Online command mode enabled, send no break to remote modem	Send break with transmitted data	Break sent with received data to the DTE
\K5	Send break with transmitted data	Send break with transmitted data	Break sent with received data to the DTE

CALLER ID
Type:	Configuration
Format:	AT [cmds] #CID= n [cmds]
Description:	Controls the Caller ID function
Command	Function
#CID=0	Caller ID disabled
#CID=1	Caller ID displays formatted data
#CID=2	Caller ID displays raw hexadecimal data

COMPRESSION
Type:	Configuration
Format:	AT [cmds] %C n [cmds]
Description:	Selects data compression
Command	Function
%C0	Data compression enabled
%C1	MNP5 enabled
%C2	V.42bis enabled
%C3	MNP5 and V.42bis enabled

CONNECT MODE
Type:	Configuration
Format:	AT [cmds] \N n [cmds]
Description:	Controls the type of connection the modem will operate in
Command	Function
\N0	Normal mode enabled
\N1	Direct mode enabled
\N2	Reliable mode enabled
\N3	Auto-reliable mode enabled
\N4	Force LAP-M mode
\N5	Force MNP mode

FLASH DIAL MODIFIER TIME
Type:	Register
Format	AT [cmds] S29= n [cmds]
Default:	Unidentified
Range:	Unidentified
Unit:	Unidentified
Description:	Time the modem will go on-hook upon receiving the ! dial modifier in dial string.

FLOW CONTROL
Type:	Configuration
Format:	AT [cmds] \G n [cmds]
Description:	Selects modem port flow control
Command	Function
\G0	Flow control disabled
\G1	Flow control enabled

FLOW CONTROL CHARACTER - XOFF
Type:	Register
Format:	AT [cmds] S33= n [cmds]
Default:	19
Range:	0-255
Unit:	ASCII
Description:	Sets the character used to represent XOFF

FLOW CONTROL CHARACTER - XON
Type:	Register
Format:	AT [cmds] S32= n [cmds]
Default:	17
Range:	0-255
Unit:	ASCII
Description:	Sets the character used to represent XON

LINE SIGNAL LEVEL
Type:	Immediate
Format:	AT [cmds] %L [cmds]
Description:	Returns a value which indicates the received line signal level

LINE SIGNAL QUALITY
Type:	Immediate
Format:	AT [cmds] %Q [cmds]
Description:	Returns a value which indicates line signal quality

MAXIMUM BLOCK SIZE FOR TRANSMISSION
Type:	Configuration
Format:	AT [cmds] \A n [cmds]
Description:	Sets the maximum transmittable block size
Command	Function
\A0	MNP block size is 64 characters
\A1	MNP block size is 128 characters
\A2	MNP block size is 192 characters
\A3	MNP block size is 256 characters

MNP - STREAM/BLOCK MODE
Type:	Configuration
Format:	AT [cmds] \L n [cmds]
Description:	Selects the transfer mode for MNP link
Command	Function
\L0	Stream mode for MNP enabled
\L1	Block mode for MNP enabled

MNP10 - COMPRESSION
Type:	Configuration
Format:	AT [cmds] -K n [cmds]
Description:	Selects MNP10 data compression
Command	Function
-K0	MNP10 disabled
-K1	MNP10 enabled
-K2	MNP10 enabled on originate mode only

MNP10 - FALLBACK
Type:	Configuration
Format:	AT [cmds] -Q n [cmds]
Description:	Allows MNP10 to fall back to speeds slower than 4800bps
Command	Function
-Q0	MNP10 at 2400 and 1200bps disabled
-Q1	MNP10 at 2400 and 1200bps enabled

MNP10 - LINK NEGOTIATION
Type:	Configuration
Format:	AT [cmds] *H n [cmds]
Description:	Sets the speed at which MNP10 link negotiation will occur
Command	Function
*H0	Link will be negotiated at highest possible speed
*H1	Link will be negotiated at 1200bps
*H2	Link will be negotiated at 4800bps

MNP10 - POWER LEVEL ADJUST
Type:	Configuration
Format:	AT [cmds] )M n [cmds]
Description:	Controls automatic transmit power level adjustment during MNP 10 link negotiation
Command	Function
)M0	Power level adjustment disabled
)M1	Power level adjustment enabled

SLEEP TIMER
Type:	Register
Format	AT [cmds] S24= n [cmds]
Default:	1
Range:	0-255
Unit:	.01 second
Description:	Maximum duration of DTE and DCE inactivity allowed prior to initiating low-power sleep mode.

TEST MODE - PTT
Type:	Immediate
Format:	AT [cmds] %TT n [cmds]
Description:	Send PTT test signals for a line tests

TRANSMISSION LEVEL
Type:	Configuration
Format:	AT [cmds] @M n [cmds]
Default:	Unidentified
Range:	Unidentified
Unit:	-1 dBm
Description:	Sets the signal level for transmission over switched phone lines

TRANSMISSION LEVEL - FAX
Type:	Register
Format:	AT [cmds] S92= n [cmds]
Default:	10
Range:	1-15
Unit:	-1 dBm
Description:	Sets the signal level for transmission while in fax mode

TRANSMISSION LEVEL - CELLULAR
Type:	Register
Format:	AT [cmds] S201= n [cmds]
Default:	10
Range:	0-15
Unit:	-1 dBm
Description:	Sets the signal level for transmission while in cellular mode

TRANSMISSION LEVEL - LEASED-LINE
Type:	Register
Format:	AT [cmds] S99= n [cmds]
Default:	10
Range:	0-15
Unit:	-1 dBm
Description:	Sets the signal level for transmission over leased-lines

TRANSMISSION LEVEL - PSTN
Type	Register or Configuration
Format	AT [cmds] S91 =n [cmds]
Default	10
Range	1-15
Unit	-1 dBm
Description	Sets the signal level for transmission over switched phone lines

V.32 - COMPROMISE EQUALIZER
Type:	Configuration
Format:	AT [cmds] :E n [cmds]
Description:	Controls V.32 compromise equalizer
Command	Function
:E0	Equalizer disabled
:E1	Equalizer enabled
