INTERLAN PCI 4T/4TS Network Card Settings and Configuration
RACAL INTERLAN, INC.
INTERLAN PCI 4T/4TS
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | PCI |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Not available |

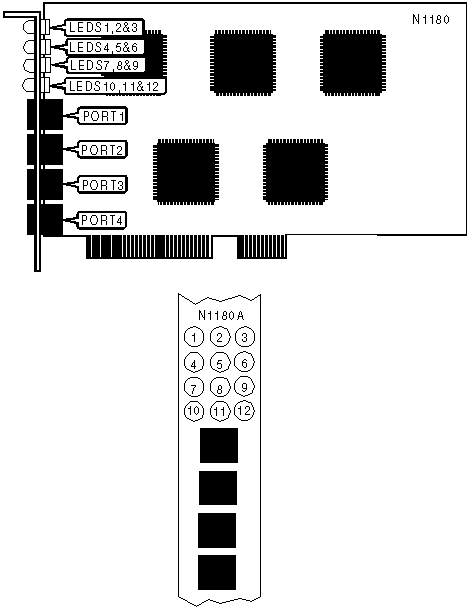

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Yellow | On | Data is being transmitted/received on Port1 |
LED1 | Yellow | Off | Data is not being transmitted received on Port1 |
LED2 | Green | On | Network connection is good on Port1 |
LED2 | Green | Off | Network connection is broken on Port1 |
LED3 | Yellow | On | Full duplex mode enabled on Port1 |
LED3 | Yellow | Off | Full duplex mode disabled on Port1 |
LED4 | Yellow | On | Data is being transmitted/received on Port2 |
LED4 | Yellow | Off | Data is not being transmitted received on Port2 |
LED5 | Green | On | Network connection is good on Port2 |
LED5 | Green | Off | Network connection is broken on Port2 |
LED6 | Yellow | On | Full duplex mode enabled on Port2 |
LED6 | Yellow | Off | Full duplex mode disabled on Port2 |
LED7 | Yellow | On | Data is being transmitted/received on Port3 |
LED7 | Yellow | Off | Data is not being transmitted received on Port3 |
LED8 | Green | On | Network connection is good on Port3 |
LED8 | Green | Off | Network connection is broken on Port3 |
LED9 | Yellow | On | Full duplex mode enabled on Port3 |
LED9 | Yellow | Off | Full duplex mode disabled on Port3 |
LED10 | Yellow | On | Data is being transmitted/received on Port4 |
LED10 | Yellow | Off | Data is not being transmitted received on Port4 |
LED11 | Green | On | Network connection is good on Port4 |
LED11 | Green | Off | Network connection is broken on Port4 |
LED12 | Yellow | On | Full duplex mode enabled on Port4 |
LED12 | Yellow | Off | Full duplex mode disabled on Port4 |
