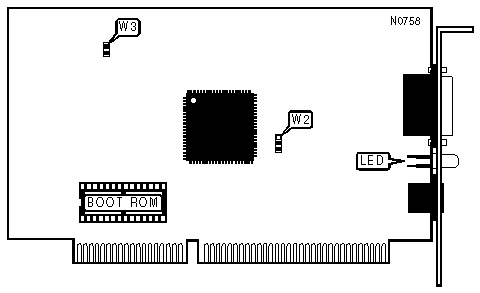

INTERLAN ETHERBLASTER REV. AA Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	RG-58A/U 50ohm coaxial Unshielded twisted pair
Boot ROM	Available

I/O ADDRESS CONFIGURATION
Address		W2
»	300h	Open
	Software configured	Closed

DATA BUS SIZE
Size		W3
»	16-bit	Pins 2 & 3 closed
	8-bit	Pins 1 & 2 closed

DIAGNOSTIC LED
Color	Status	Condition
Green	On/Blinking	Network connection is good
Green	Off	Network connection is broken
