INTERLAN ETHERBLASTER TP Network Card Settings and Configuration

RACAL INTERLAN, INC.

INTERLAN ETHERBLASTER TP

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
16-bit ISA
Topology
Linear Bus/Star
Wiring Type
Unshielded twisted pair
AUI Transceiver via DB-15 port
Boot ROM
Not available

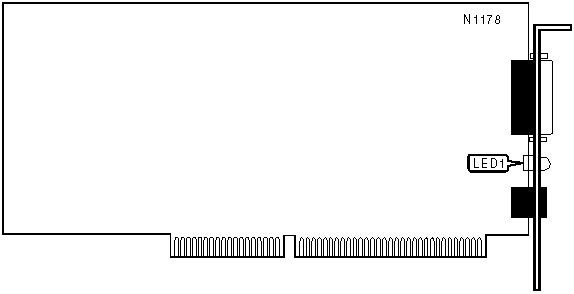

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
Network connection is good
LED1
Green
Off
Network connection is broken
