PDE8023PLUS-32FL-SMA, PDE8023PLUS-32FL-ST Network Card Settings and Configuration

NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	32-bit EISA
Topology	Linear bus, Star
Wiring Type	Fiber optic cable
Boot ROM	Available

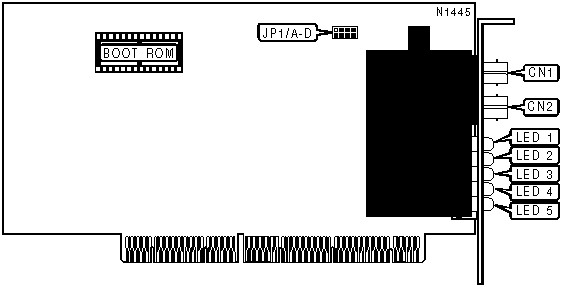

CONNECTIONS
Function	Label	Function	Label
Fiber optic - transmit	CN1	Fiber optic - receive	CN2

WIRING TYPE SELECTION
Setting	JP1/A	JP1/B	JP1/C	JP1/D
Software selectable	Closed	Open	Open	Open
10BASE-T	Open	Closed	Open	Open
10BASE5	Open	Open	Closed	Open
10BASE2	Open	Open	Open	Closed

SQE/JABBER SELECTION
Setting		JP2/A	JP2/B	JP2/C
»	SQE enabled, Jabber enabled	Closed	Open	Open
	SQE disabled, Jabber disabled	Open	Closed	Open
	SQE disabled, Jabber enabled	Open	Open	Closed

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Loopback enabled	JP3	Pins 2 & 3 closed
	Loopback disabled	JP3	Pins 1 & 2 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED 1	Green	On	Adapter transmitting data
LED 1	Green	Off	Adapter not transmitting data
LED 2	Green	On	Adapter receiving data
LED 2	Green	Off	Adapter not receiving data
LED 3	Green	On	Network connection good
LED 3	Green	Off	Network connection broken
LED 4	Red	On	Random data being sent
LED 4	Red	Off	Random data not being sent
LED 5	Red	On	Network collision detected
LED 5	Red	Off	Network collision not detected
