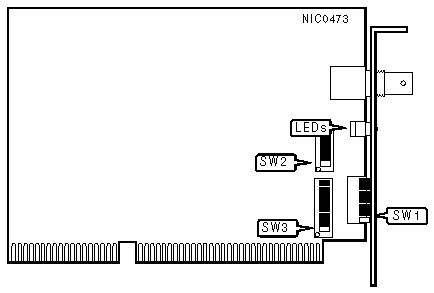

RANGELAN/ISA Network Card Settings and Configuration

NIC Type	CSMA/CA
Transfer Rate	242Kbps
Data Bus	16-bit ISA
Topology	Star
Output Power	100mW
Frequency Band	902 - 928MHz (Three Channels)
Range	"Several hundred feet" inside a building Up to 800 feet outside of a building
Boot ROM	Not available

I/O BASE ADDRESS
Address		SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7
	100h	Off	Off	Off	Off	Off	Off	On
	120h	Off	Off	On	Off	Off	On	On
	140h	Off	Off	Off	On	Off	On	On
	218h	On	On	Off	Off	Off	Off	On
»	270h	Off	On	On	On	Off	Off	On
	280h	Off	Off	Off	Off	On	Off	On
	290h	Off	On	Off	Off	Off	On	On
	298h	On	On	Off	Off	On	Off	On
	2A0h	Off	Off	On	Off	On	Off	On
	2A8h	On	Off	On	Off	On	Off	On
	2E0h	Off	Off	On	On	On	Off	On
	300h	Off	Off	Off	Off	Off	On	On
	358h	On	On	Off	On	Off	On	On
	360h	Off	Off	On	On	Off	On	On
	368h	On	Off	On	On	Off	On	On

DMA CHANNEL
Channel		SW2/1	SW2/2	SW2/3	SW2/4	SW2/5	SW2/6
	DMA0	On	On	Off	Off	Off	Off
»	DMA1	Off	Off	On	On	Off	Off
	DMA2	Off	Off	Off	Off	On	On

INTERRUPT REQUEST
IRQ		SW3/1	SW3/2	SW3/3	SW3/4	SW3/5	SW3/6	SW3/7	SW3/8
	IRQ3	On	Off	Off	Off	Off	Off	Off	Off
	IRQ4	Off	On	Off	Off	Off	Off	Off	Off
	IRQ5	Off	Off	On	Off	Off	Off	Off	Off
	IRQ7	Off	Off	Off	On	Off	Off	Off	Off
	IRQ10	Off	Off	Off	Off	On	Off	Off	Off
	IRQ11	Off	Off	Off	Off	Off	On	Off	Off
	IRQ12	Off	Off	Off	Off	Off	Off	On	Off
»	IRQ15	Off	Off	Off	Off	Off	Off	Off	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Data is being transmitted
LED1	Yellow	Off	Data is not being transmitted
LED2	Green	On	Data is being received
LED2	Green	Off	Data is not being received
