PRONET-4/16 MODEL 1690 PLUS-AB (DUAL PORT) Network Card Settings and Configuration
PROTEON, INC.
PRONET-4/16 MODEL 1690 PLUS-AB (DUAL PORT)
Card Type | Token Ring |
Data Bus | 32-bit PCI |
Maximum Network Rate | 4/16Mbps |
Topology | Ring |
Wiring Type | Shielded/Unshielded twisted pair |
Boot ROM | Unavailable |

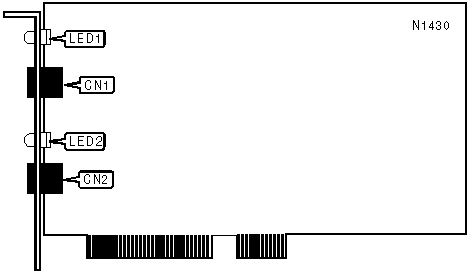

CONNECTIONS | |
Function | Label |
Unshielded twisted pair port | CN1 |
Unshielded twisted pair port | CN2 |
Note: If your network uses STP cable, use optional cable adapter Proteon model p1600-01. | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Yellow | On | Network connection is good on CN1 |
LED1 | Yellow | Off | Network connection is broken on CN1 |
LED2 | Yellow | On | Network connection is good on CN2 |
LED2 | Yellow | Off | Network connection is broken on CN2 |
