2090-1 Network Card Settings and Configuration

Card Type	Transceiver
NIC Type	Unidentified
Boot ROM	Not available
Network Transfer Rate	1.544Mbps
Topology	Star, Point-to-point
Wiring Type	Unshielded twisted pair
Data Bus	External

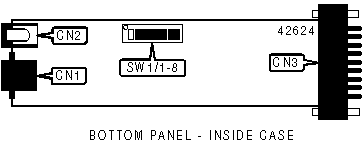

CONNECTIONS
Function	Label	Function	Label
RJ-48C UTP connector	CN1	DC power connector	CN2
DTE connector	CN3

DTE SPEED SELECTION
Speed	SW1/1	SW1/2	SW1/3
64Kbps	Off	Off	Off
128Kbps	On	Off	Off
256Kbps	Off	On	Off
384Kbps	On	On	Off
512Kbps	Off	Off	On
768Kbps	On	Off	On
1024Kbps	Off	On	On
1536Kbps	On	On	On

DS0 START POSITION SELECTION
Setting	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
1	Off	Off	Off	Off	Off
2	On	Off	Off	Off	Off
3	Off	On	Off	Off	Off
4	On	On	Off	Off	Off
5	Off	Off	On	Off	Off
6	On	Off	On	Off	Off
7	Off	On	On	Off	Off
8	On	On	On	Off	Off
9	Off	Off	Off	On	Off
10	On	Off	Off	On	Off
11	Off	On	Off	On	Off
12	On	On	Off	On	Off
13	Off	Off	On	On	Off
14	On	Off	On	On	Off
15	Off	On	On	On	Off
16	On	On	On	On	Off
17	Off	Off	Off	Off	On
18	On	Off	Off	Off	On
19	Off	On	Off	Off	On
20	On	On	Off	Off	On
21	Off	Off	On	Off	On
22	On	Off	On	Off	On
23	Off	On	On	Off	On
24	On	On	On	Off	On
1.544MB unframed T1	Off	On	On	On	On

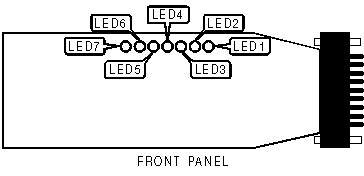

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Data is being transmitted
LED1	Green	Off	Data is not being transmitted
LED2	Green	On	Data is being received
LED2	Green	Off	Data is not being received
LED3	Red	On	Network connection is broken
LED3	Red	Off	Network connection is good
LED4	Red	On	Alarm condition - loss of sync or loss of frame
LED4	Red	Off	No alarm condition
LED5	Red	On	Error has occurred
LED5	Red	Off	No errors have occurred
LED6	Yellow	On	Operating in test mode
LED6	Yellow	Off	Not operating in test mode
LED7	Green	On	Power is on
LED7	Green	Off	Power is off
