LE-8029R (REV. 2.0) Network Card Settings and Configuration

NIC Type	Ethernet
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus/Star
Wire Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Data Bus	32-bit PCI
Card Size	Half height, half length

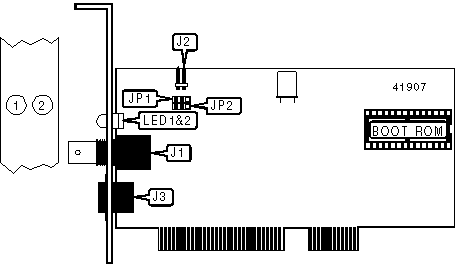

CONNECTIONS
Function	Label	Function	Label
RG-58A/U 50ohm coaxial connector	J1	UTP connector	J3
External transmit/receive LED connector	J2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Maximum coaxial cable length is 185 meters	JP1	Pins 2 & 3 closed
	Maximum coaxial cable length is 300 meters	JP1	Pins 1 & 2 closed
»	Coaxial connector is not terminated	JP2	Pins 1 & 2 closed
	Coaxial connector is terminated	JP2	Pins 2 & 3 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
J2	N/A	Blinking	Card is transmitting or receiving data
J2	N/A	Off	Card is not transmitting or receiving data
LED1	Unidentified	Blinking	Card is transmitting or receiving data
LED1	Unidentified	Off	Card is not transmitting or receiving data
LED2	Unidentified	On	Network connetion is good
LED2	Unidentified	Blinking	Network connection is intermittent
LED2	Unidentified	Off	Network connection is broken
