RAPIDFIRE 3530 Network Card Settings and Configuration







OLICOM, INC.

RAPIDFIRE 3530

Card Type

Network Interface Card

NIC Type

Token Ring

Maximum Onboard Memory

4KB

Boot ROM

Not available

Network Transfer Rate

100Mbps

Topology

Ring

Wiring Type

Unshielded twisted pair

Data Bus

32-bit PCI

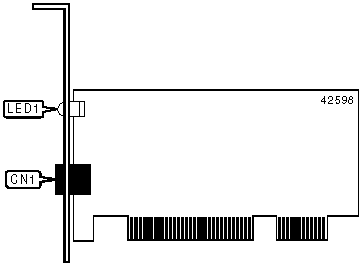

CONNECTIONS

Function

Label

RJ-45 UTP connector

CN1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection is good

LED1

Green

Off

Network connection is not good
