OC-3137 Network Card Settings and Configuration
OLICOM, INC.
OC-3137
Card Type | Network Interface Card |
NIC Type | Token Ring |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available |
Network Transfer Rate | 4/16Mbps |
Topology | Star, Ring |
Wiring Type | Shielded twisted pair Unshielded twisted pair |
Data Bus | 32-bit PCI |

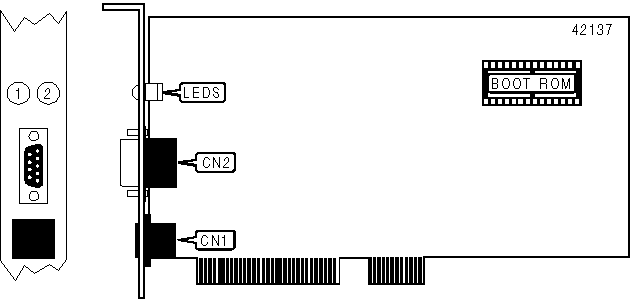

CONNECTIONS | |||
Function | Label | Function | Label |
UTP via RJ-45 connector | CN1 | STP via 9-pin connector | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Network connection is good |
LED1 | Green | Off | Network connection is broken |
LED2 | Yellow | On | Data is being transmitted/received at 4Mbps |
LED2 | Yellow | Off | Data is being transmitted/received at 16Mbps |
