OC-6152 ATM PCI 155 Network Card Settings and Configuration

NIC Type	ATM
Network Transfer Rate	155.52Mbps
Data Bus	32-bit PCI
Topology	Star
Wiring Type	Fiber optic cable
Boot ROM	Not available

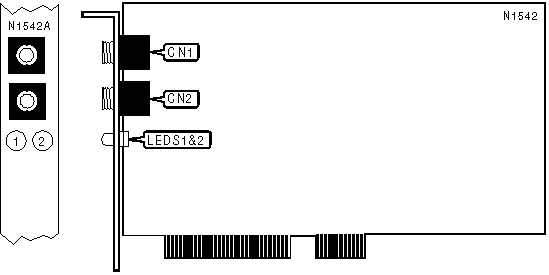

CONNECTIONS
Function	Label	Function	Label
Fiber optic cable port (RX)	CN1	Fiber optic cable port (TX)	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Clock is synchronized on the receive path
LED1	Green	Off	Clock is not synchronized on the receive path
LED2	Yellow	On	Loss of signal on the receive path
LED2	Yellow	Off	Signal good on receive path

TECHNICAL NOTE

Note: The OC-6152 ATM PCI 155 will emulate Token Ring using Ring topology.
