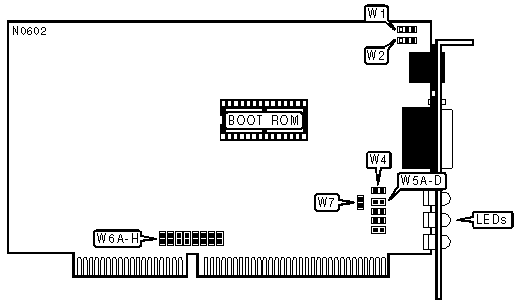

UTP16A Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	Unshielded twisted pair
Boot ROM	Available

CABLE TYPE
Type	W1	W2
Unshielded twisted pair	Pins 2 & 3 closed	Pins 2 & 3 closed
AUI transceiver via DB-15 port	Pins 1 & 2 closed	Pins 1 & 2 closed

DATA BUS TYPE
Data Bus	W4
NIC in 8-bit slot	Open
NIC in 16-bit slot	Closed

BOOT ROM ADDRESS
Address		W5A	W5B
	C0000h	Closed	Closed
»	C8000h	Open	Closed
	D0000h	Closed	Open
	D8000h	Open	Open

BASE I/O ADDRESS
Address		W5C	W5D
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open

INTERRUPT SETTINGS
IRQ		W6A	W6B	W6C	W6D	W6E	W6F	W6G	W6H
	2/9	Open	Open	Open	Open	Open	Open	Open	Closed
»	3	Open	Open	Open	Open	Open	Open	Closed	Open
	4	Open	Open	Open	Open	Open	Closed	Open	Open
	5	Open	Open	Open	Open	Closed	Open	Open	Open
	10	Open	Open	Open	Closed	Open	Open	Open	Open
	11	Open	Open	Closed	Open	Open	Open	Open	Open
	12	Open	Closed	Open	Open	Open	Open	Open	Open
	15	Closed	Open	Open	Open	Open	Open	Open	Open

COMPATIBILITY MODE
Mode	W7
Compatibility mode 1	Closed
Compatibility mode 2	Open
Note:Change this jumper to the opposite setting if the following problems occur: system runs slowly, system locks up on LOGIN, system hangs at NET3, errors are returned at initialization, VGA video buffers get scrambled, or system locks during application use.
